| Product model |

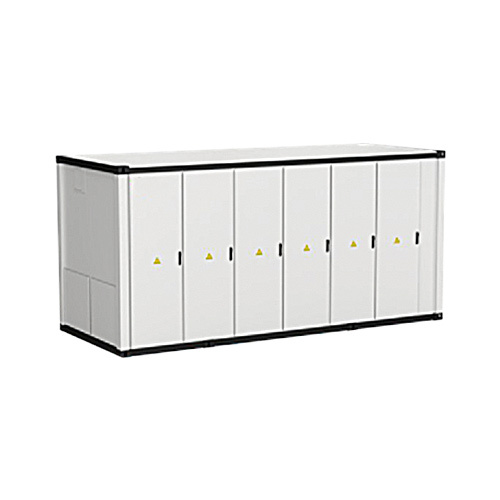

XY - ESS - 2500 - 5015 - 0.7 - L |
| Parameters on the DC side |
Battery cell type |
Lithium iron phosphate (LFP) 314Ah energy storage special cell |
| Grouping method |
1P416S*12 |
| Nominal energy |
5015kWh |
| Working voltage |
1040V - 1518V |
| Rated charge/discharge rate |
0.5P |
| Conform to the standard |
GB/T 34131; GB/T 36276 |
| Parameters on the AC side |
Rated AC power |
2500kW |
| Alternating current distortion rate |
<3% |
| Rated grid voltage |
690V |
| Rated grid frequency |
47Hz - 50Hz |
| Conform to the standard |
GB/T 34133; GB/T 34120 |
| Basic parameters |
Maximum system efficiency |
≥92% (excluding auxiliary component losses) |
| Discharge depth |
100% |
| Number of cycles |
≥10000 |
| Protection grade |
IP54 (PACK IP67) |
| Cooling method |
Liquid cooling |
| Fire protection system |
Two - level fire protection: system level and PACK level |
| Communication mode |
Ethernet |
| Communication protocol |
Modbus TCP, IEC104 |
| Noise |
≤75dB |
| Weight |
About 45 tons |
